springboot整合graphql

GraphQL是比REST更高效、强大和灵活的新一代API标准。详细的可以看官网GraphQL。

下面介绍一个Spring boot整合graphql简单的例子。

• 项目准备：相关依赖的引入：

  <dependencies>
  		<!--web -->
  		<dependency>
  			<groupId>org.springframework.boot</groupId>
  			<artifactId>spring-boot-starter-web</artifactId>
  		</dependency>
  		<!--lombok -->
  		<dependency>
  			<groupId>org.projectlombok</groupId>
  			<artifactId>lombok</artifactId>
  			<optional>true</optional>
  		</dependency>
  		<!--graphql -->
  		<dependency>
  			<groupId>com.graphql-java-kickstart</groupId>
  			<artifactId>graphql-spring-boot-starter</artifactId>
  			<version>11.0.0</version>
  		</dependency>
  		<!--playground -->
  		<dependency>
  			<groupId>com.graphql-java-kickstart</groupId>
  			<artifactId>playground-spring-boot-starter</artifactId>
  			<version>11.0.0</version>
  		</dependency>
  </dependencies>

Query

• 定义schema，分别为：

  query.graphqls

  type Query{
    billingAccount(id: ID): BillingAccount
  }

  billingAccount.graphqls

  type BillingAccount {
    id: ID!
    name: String!
    currency: Currency
  }

  currency.graphqls

  enum Currency{
      RMB,
      USD
  }

• 定义基础要操作的模型

  @Builder
  @Value
  public class BillingAccount {
      UUID id;
      String name;
      Currency currency;
  }

  public enum Currency {
      RMB, USD
  }

• 定义resolver

  @Slf4j
  @Component
  public class BillingAccountResolver implements GraphQLQueryResolver {
      public BillingAccount billingAccount(UUID id){
          log.info("receive billingAccount id is: "+ id);
          return BillingAccount.builder()
                  .id(id)
                  .currency(Currency.RMB)
                  .name("张三")
                  .build();
      }
  }

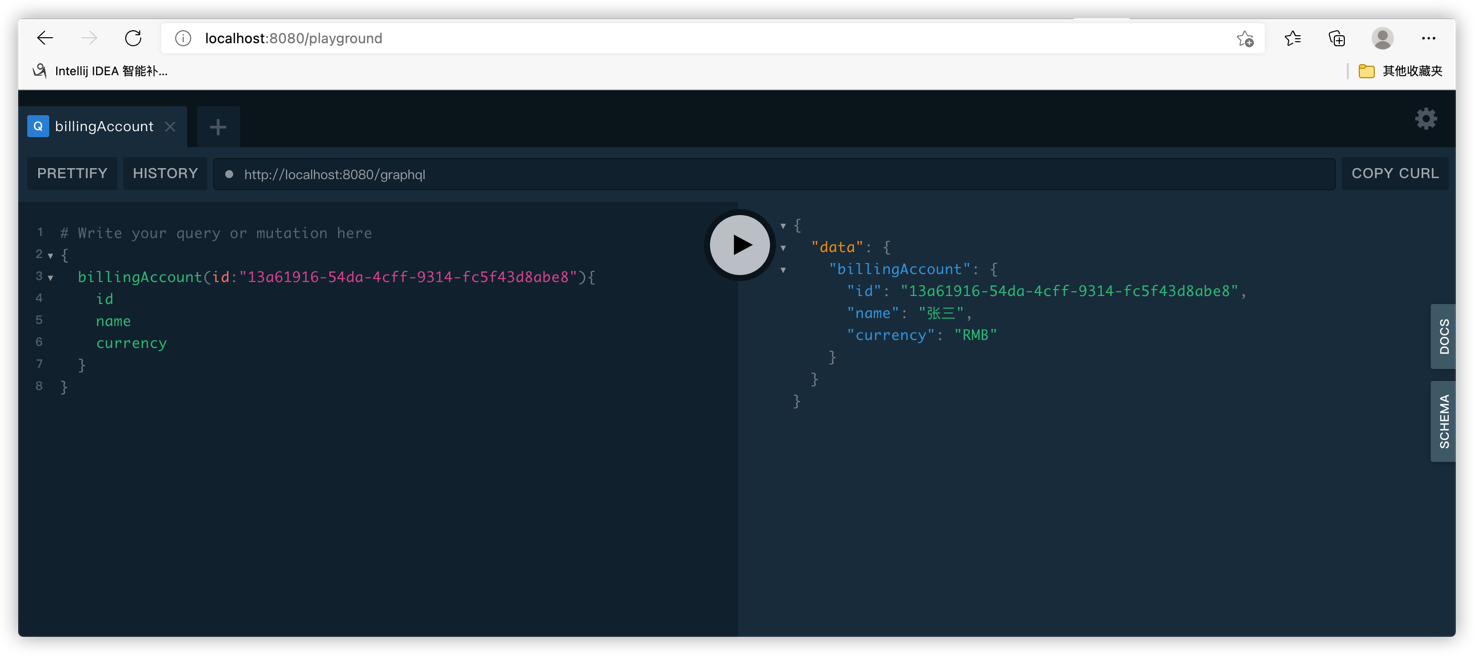

• 效果图

mutation

• 定义schema

type Mutation{
    createBillingAccount(input: CreateBillingAccountInput): BillingAccount
}

• 定义input

input CreateBillingAccountInput{
    name: String
}

• 定义input 对应的model

@Data
public class CreateBillingAccountInput {
  String name;
}

• 定义mutationResolver

@Component
public class BillingAccountMutation implements GraphQLMutationResolver {

  public BillingAccount createBillingAccount(CreateBillingAccountInput input){

    return BillingAccount.builder()
      .id(UUID.randomUUID())
      .currency(Currency.RMB)
      .name(input.getName())
      .build();
  }
}

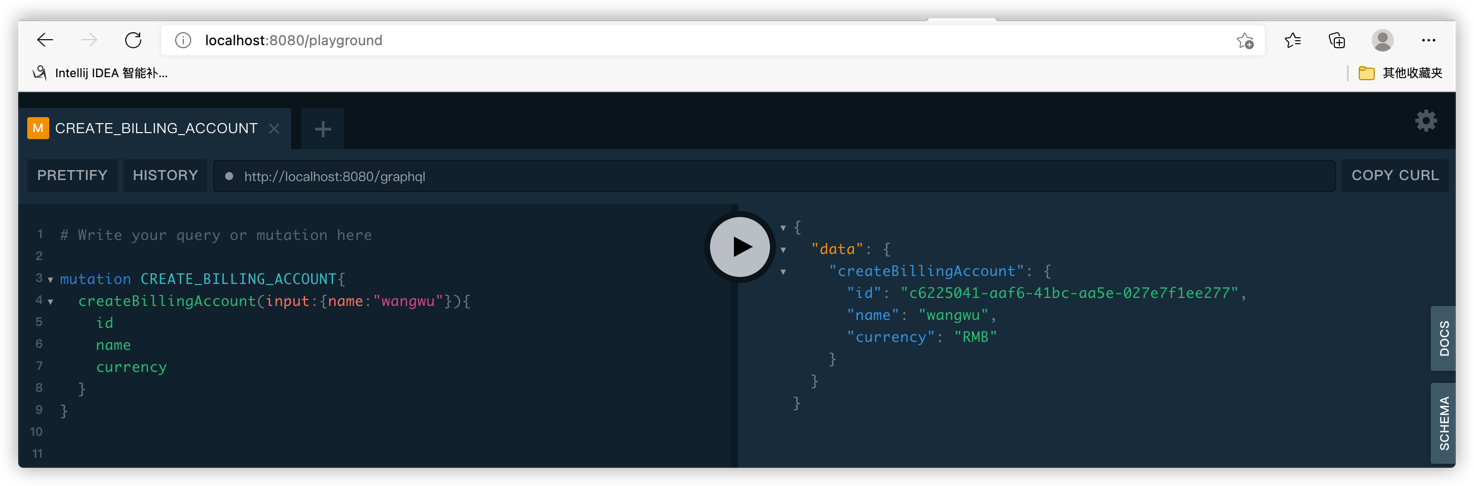

效果图

!
